China None Air Source AC Pulse Anti Static Bar AP-AB1215 Can Remote control Ion Output wholesale

None Air Source AC Pulse Anti Static Bar AP-AB1215 Can Remote control Ion Output

Name: None Air Source AC Pulse Anti Static Bar APAB1215 Can Remote control Ion Output
Brand: AP&T
Price: 298 USD

Ask Latest Price

Brand Name :AP&T

Model Number :AP-AB1215

Certification :CE

Place of Origin :Shanghai,China

MOQ :1 piece

Price :USD 298 Per piece

Payment Terms :L/C,, T/T, Western Union, MoneyGram,Paypal

Delivery Time :3-10 days after payment

Packaging Details :in cartons

Supply Ability :500 pieces per month

Item :Ion Bar

Duty factor :10%-90%

Output voltage :DC±5.00(KV)

Output frequency :5, 30Hz (default)

Power :10W

Ion balance :≤|±30V| (AVE)

Discharge time :≤1S

Contact Now

Add to Cart

View Product Description

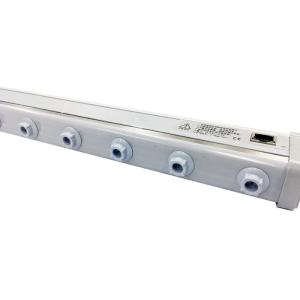

AP-AB1215 None Air Source AC Pulse Ion Bar
General
AP-AB1215 AC pulse ion bar is the newest developed bar type static eliminator for static removing.
It can be widely used in electronics, plastics, chemicals, printing, textile, optical and other industries.

Product Feature

11.Bar shaped and cross over static eliminator

22.Adjustable positive and negative ion output rate

33.Manufactured by using the latest patented technology of static removing

44.Fast speed of static removing, low ion balance and high safety

55.Adjustable positive and negative ion frequency

66.With alarm function of high voltage fault

77.Remote control ion output

8.8.Shock-proof function prevent user from being electric shocked

9.9.Support integrate control ,easy to operate.

◆Specification

Model	AP-AB1215
Output voltage	DC±5.00(KV)
Output frequency	5, 30Hz (default)
Duty factor	10%-90%
Power	10W
Working distance	100－1000mm
Ion balance	≤\|±30V\| (AVE)
Discharge time	≤1S
Working temperature	0℃-50℃
Working humidity	＜70%
Bar Width	335-410mm(spacing 25mm)；460-2960(Spacing 50mm)
Note	USD12.0 Per additional 100mm

1,General
AP-AB1216 Air source AC pulse ion bar is the newest developed bar type static eliminator for static removing.
It can be widely used in electronics, plastics, chemicals, printing, textile, optical and other industries.

2,Features

Bar shaped and cross over static eliminator
Manufactured by using the latest patented technology of static removing.
Fast speed of static removing, low ion balance and high safety.
LCD on bar body indicates working status for easy use and maintenance
Output voltage adjustable, fit for different static environment.

With alarm function of ion volume, electrode tip cleaning and high voltage

Notice on use and safety warning

Read this manual carefully before installing and using of the device.
Be sure the device reliable ground connected during use, otherwise may cause bar body burn.
Touching of electrode tip during use strictly prohibited.
Do not use this device in the environment where the humidity is greater than 75%.
Input air must be clean and filled air without water, oil and dust particle
It is strictly prohibited to use this equipment in combustible and explosive environment.
Internal maintenance and repair must be carried out by professionals

Installation guide

Installation

Choose optimal location for discharge and fix the bar and power supply steadily.
Connect earth to earth connect end on ion bar.
Insert one end of the power cord into power adapter and the other end into power port.
Connect air connector to air supply device with tube and turn on the air switch.
Turn on the power switch and adjust proper air pressure.

Outline dimensional drawing

2	Static removing performance decline obviously	Pollute or damage of discharge pin	Clean or replace discharge pin
		Electrode pad not tightly screwed	Be sure the electrode pad screwed tightly
		Improper installation position	Confirm the optimum installation position
3	Static removing performance decline	There are conductor or other ion bar around	Remove conductor or other ion bar
4	HV Alarm	Electromagnetic disturb	Switch off and reset
		Abnormal discharge	Check installation position and be away from conductors
		Pollute or damage of discharge pin	Send back to manufacturer
5	Smoking or burning	Pollute or damage of discharge pin or electrode pad insulator	Send back to manufacturer
