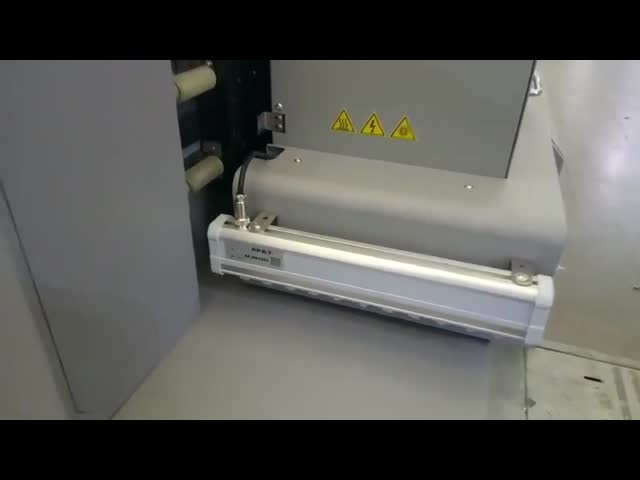

DC±5KV High Efficient Anti staic Bar Used For UV Flatbed Printer

AP-AB1205 antistaic bar used for UV flatbed printer staitc remove device

AP-AB1205 AC electroshock-proof ion bar is the bar shape static eliminator used to remove electrostatic on object surface.

AP - AB1204 AC electroshock-proof ion bar generates positive and negative ion on emitter by AC high voltage and transfer the ion by pressed air to the object surface to be static removed. Thus neutralize the ion on the object surface and eliminate static efficiently and reliably. .

Features

(1) Fast discharge speed, low ion balance and high safety performance

(2) Electroshock-proof function

(3)Bar shaped and cross over static eliminator

(4)Abnormal high voltage alarm function

(5)Compact structure and elegant appearance

Specification

Use and installation

(1)Choose an optimal position and fix the ion bar and adaptor tightly.

(2)Connect two ends of power cable with adaptor and ion bar.

(3)Connect the ground end on the bar body to the ground bolt on the power

(4)Switch on the power and set proper parameters.

Maintenance

• User should clean and maintain timely to ensure the good performance of the product according to working environment and requirement of ESD protection. Clean the carbon materials on electrode tip, discharge pad and metal discharge body with static brusher or clean cloth with ethanol can obviously improve the performance.

Caution:

• Must be done after the power is shut done for 10 minutes
• Restart must wait till alcohol completely volatilized after cleaning by clean cloth with ethanol. Any other organic solution is not allowed to be used to clean the rod.

• Stop using when POS/NEG working indication keeps off. Re-use after check and repair by professionals.
