Antistatic Discharge Equipment DC Ionizing Blower Easy Maintenance Ionizer
General
AP-DC2458 ionizing air blower is a member of the ionizing blower product series manufactured by Shanghai Anping Static Science&Technology Co.,Ltd, which is a reliable and high efficient device in providing static removing for the objective surface.
AP-DC2458 applies the latest technology of ionization model in the world. It generate both polarity ion and arrive the object surface where the static to be eliminated most equally. Eliminate static effectively and control the remaining static well.
AP-DC2458 is widely used in electronics,plastic,chemical,printing and optics industry etc.
Features
1, Low power and long lifetime
2, Large volume of ion generating and fast speed of static removing
3, Stepless adjustment of fan speed
4, Stable, safe and reliable performance
5, Detachable cover net both front and back, convenient to maintain
6, Built-in power supply and convenient to use
2. Industry Applications

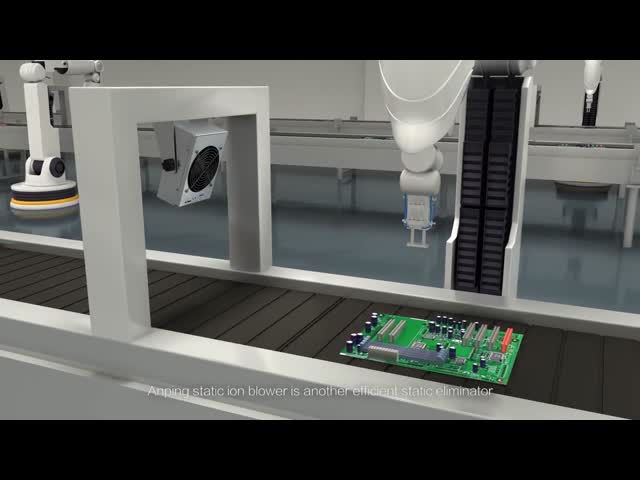

Used in electronics, optoelectronics, semiconductors, plastics, films and printing industries.
3, Specification
| Model | AP-DC2458 |
| Input voltage | AC220V/50Hz or 110V/60Hz |
| Working voltage | ±DC4000-DC7000V |
| Power | 12W |
| Ion balance | -10V~+10V(300mm testing center from the air outlet) |
| Discharge speed | ≤1.5s (300mm testing from thr air outlet) |
| Effective working range | 1200*600mm(L*W) |
| Air volume | 0-95CFM(adjustable) |
| Noise | ≤45df(150mm from the air outlet) |
| Ozone thickness | ≤0.02ppm(150mm from the air outlet) |
| Working temperature | 0-50℃ |
| Dimension | 180*102*230mm(L*M*H) |
| Net weight | 1960G |
| Ion emission | Steady state DC |
| Transmitting electrode | Tungsten alloy |
| Discharge structure | Uncoupled electrical contact (discharge cylinder) |
| Alarm indication | The power indicator is on and working normally. |
| shell material | Aluminum dusting |
| Mounting accessories | 1 pair of U-shaped aluminum powder spray mounting bracket, 1 pair of bakelite screw handles (M6×12) |
| Gross weight | 2620g |
| Quality assurance | 1 Year |
| Certificate | CE |
4, Working Ways(DC)
Testing instrument :3M-711 Static tester
Testing standard :SJ/T10694-2006,GB/T14437-97
Testing voltage :±1000 — ±100V Attenuation
Testing environment :Humidity 30%—50% Temperature 20±5℃
Outline Dimensional Drawing
Positioning
Installation
When using AP-DC2458 ionizing air blower,the air transmitter should be vertical to the object which static to be removed. The trestle should be fixed on stable and plain surface such as wall by screw and nut.
AP-DC2458 ionizing air blower should be put near working area or 300~900mm to the objective. By screw the knob on both side of the trestle the horizontal angle can be adjusted so that the optimal effect of static removing can be achieved.
